¶ The Quilter Frontliner Series
Introducing the most advanced guitar amplifi cation system available for the guitarist of today. The Frontliner 2x8W allows you to mount any Quilter “Block style" amplifier in the rear mounted docking bay, turning it into a powerfulgrab and go 200 watt combo. Pick it up with one hand, 200 watt combo. Pick it up with one hand, walk onstage and easily outperform cumbersome 4x12 rigs!
- CNC milled footcups to preci sely locate amplifier in docking bay
- Quick release thumbscrews let you detach your head for fly dates
- Brushed, black anodized, aluminum plate securely retains amplifier
- High grade, ultra-light plywood for minimum weight
- Dual 8” concert grade dri vers- Heavy duty input jack and speaker wiring with strain relief terminations
- Chrome plated, rubber cushioned steel reinforced handle

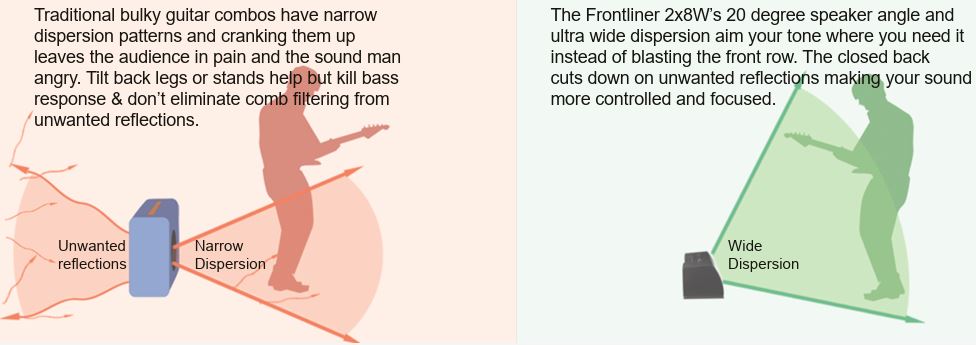

- 130° dispersi on with 20° speaker tilt delivers wide, clear coverage
- T-5052 aircraft grade anodized aluminum alloy grill
- Accepts Quilter 101 Series, or Quilter "Block" style amplifiers
¶ Using Your FRONTLINER SERIES Cabinet With a Quilter Block Series Amplifier
- Remove two thumbscrews from near retainer plate.
- Insert the 1/4" speaker cable into the 4 Ohm speaker jack on the back of the amplifier.
- Dress the cable around the feet.
- Position the amplifier in the mounting holes being careful not to crush the speaker cable underneath the feet of the amplifier.
- While holding the amplifier in with the rear retainer plate, screw in the two thumbscrews on either side of the plate.
- Plug the dangling 1/4" cable into the FRONTLINER 2x8 speaker jack.
- Plug in the locking A/C cable (NOTE: IEC cable is different for each)
¶ Specifications
| Frontliner 2x8 Specifications | |
| Speakers | two Celestion TF0818" wired in parallel |
| Power Handling | 200 watts wRMS |
| DIMENSIONS | |
| H x W x D: | 13.5” (34.3 cm) x 24” (61 cm) x 13.5” (34.3 cm) |
| Weight: | 24.9 lbs (11.29 kg) |
¶ Care And Maintainence
Clean the outer surfaces with a clean, damp cloth or vacuum with a soft brush. Never use any abrasives, harsh cleaners or solvents. The FRONTLINER SERIES is manufactured with high-quality components using modern industrial processes that greatly reduce production defects. Each speaker goes through an intensive testing process before it leaves the factory ensuring that your amplifier will give you years of flawless service. There are no user-serviceable parts inside the speaker. Any repairs should be performed by a trained service professional. Always use the speaker in a well-ventilated environment and protect from external heat sources such as furnaces or direct sunlight. Prolonged high-volume playing causes heat buildup in the speaker which reduces its working lifetime.
